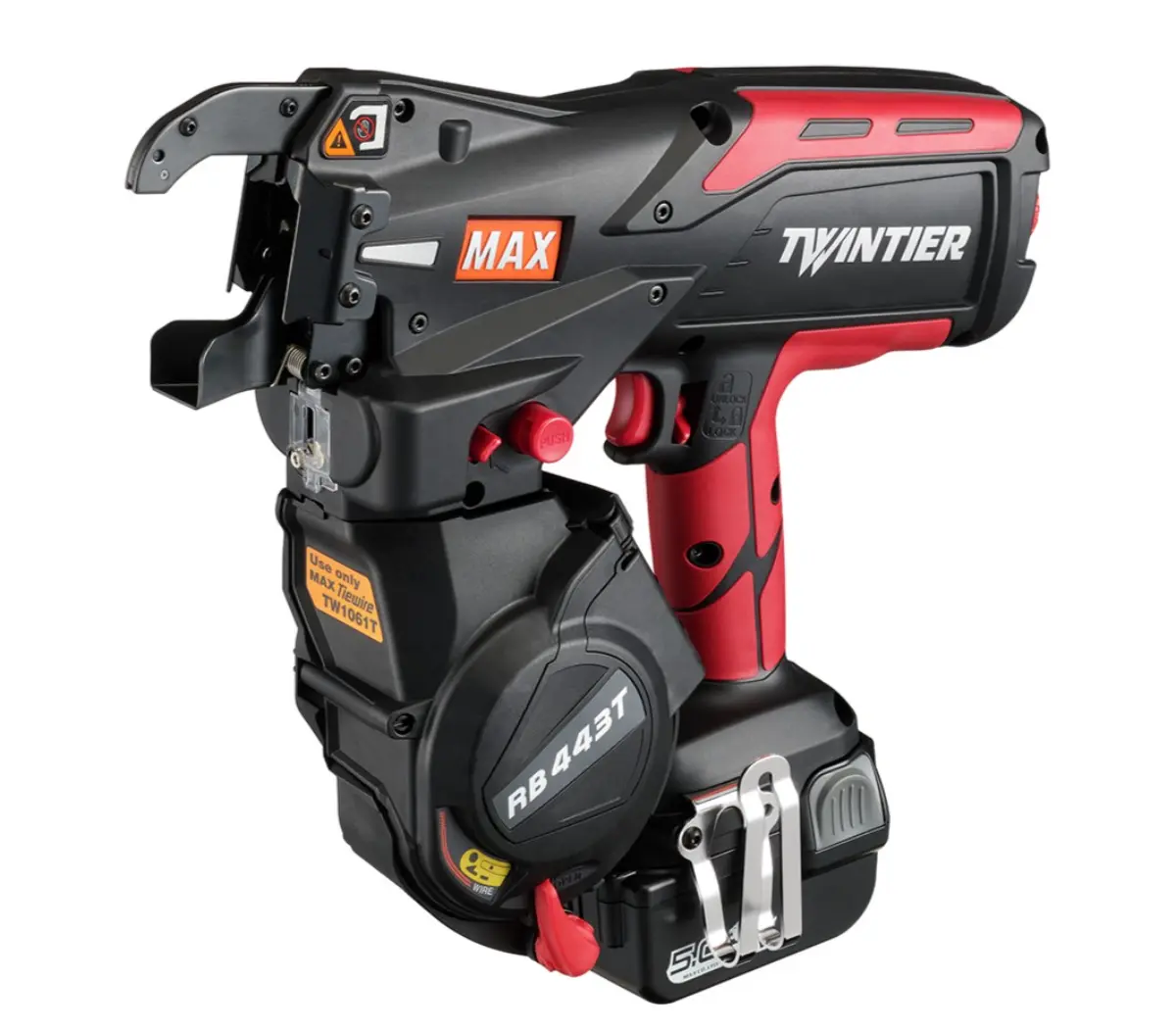

RB443T
Description
Advanced cordless rebar tying tool designed for fast and efficient tying in reinforced concrete applications. The TWINTIER system offers high productivity, reduced wire consumption and reliable performance on demanding jobsites.
Features
- Tying Speed: 0.5 sec/tie, 30% faster than RB441T.
- Applicable Combination: Rebar D10 × 10 mm – D20 × 25 mm, wire mesh 2.6 × 2.6 mm – 8.0 × 8.0 mm.
- Short Stroke: Shorter trigger stroke than RB441T, helping reduce finger fatigue.

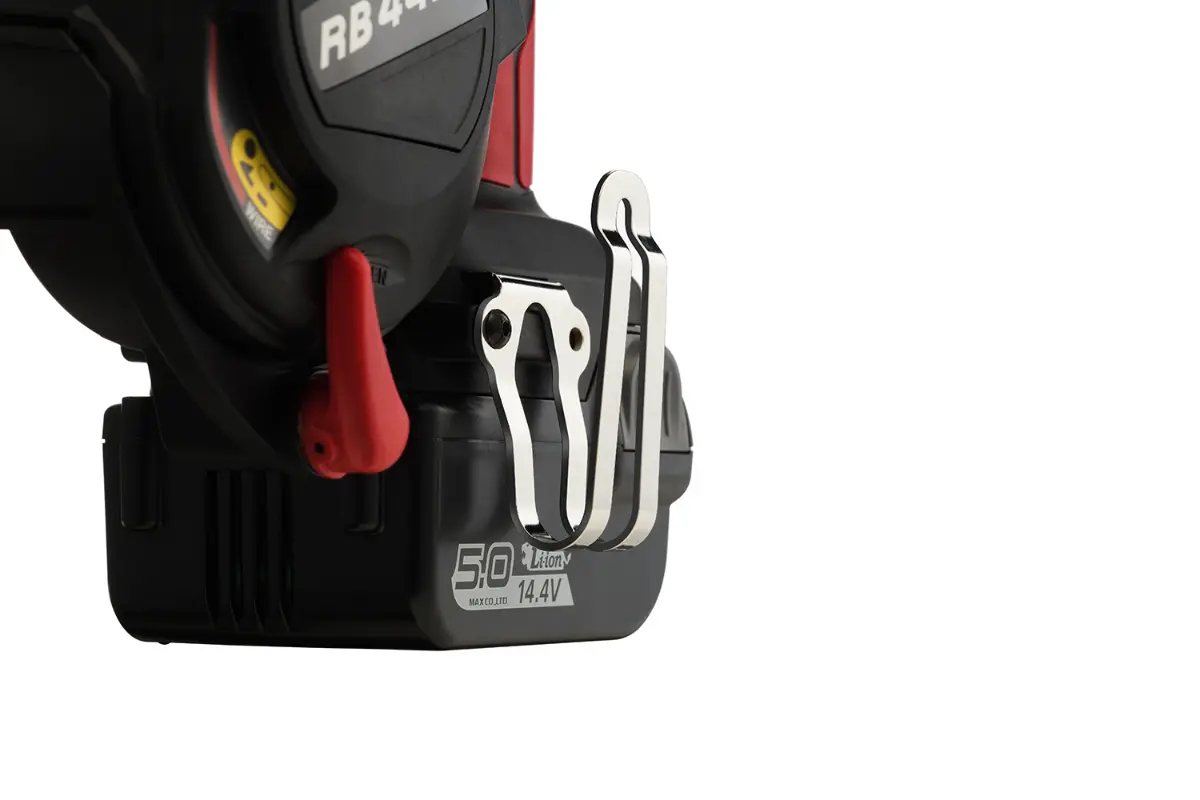

- Hook: Belt hook is equipped.
- Double Wire: Dual wire feeding mechanism increases productivity.
- Cost Savings: Wire pull back mechanism dispenses the precise amount of wire needed to form a tie, reducing wire usage.
- The TWINTIER: Up to 5000 ties per battery charge and up to 240 ties per coil of wire (on 13 mm × 13 mm rebar).
- Shorter Tie Height: Wire bending mechanism produces a shorter tie height, requiring less concrete cover over the tie.
- Slim Arm Fits: Slim arm fits easily at a 45° angle for tight ties.

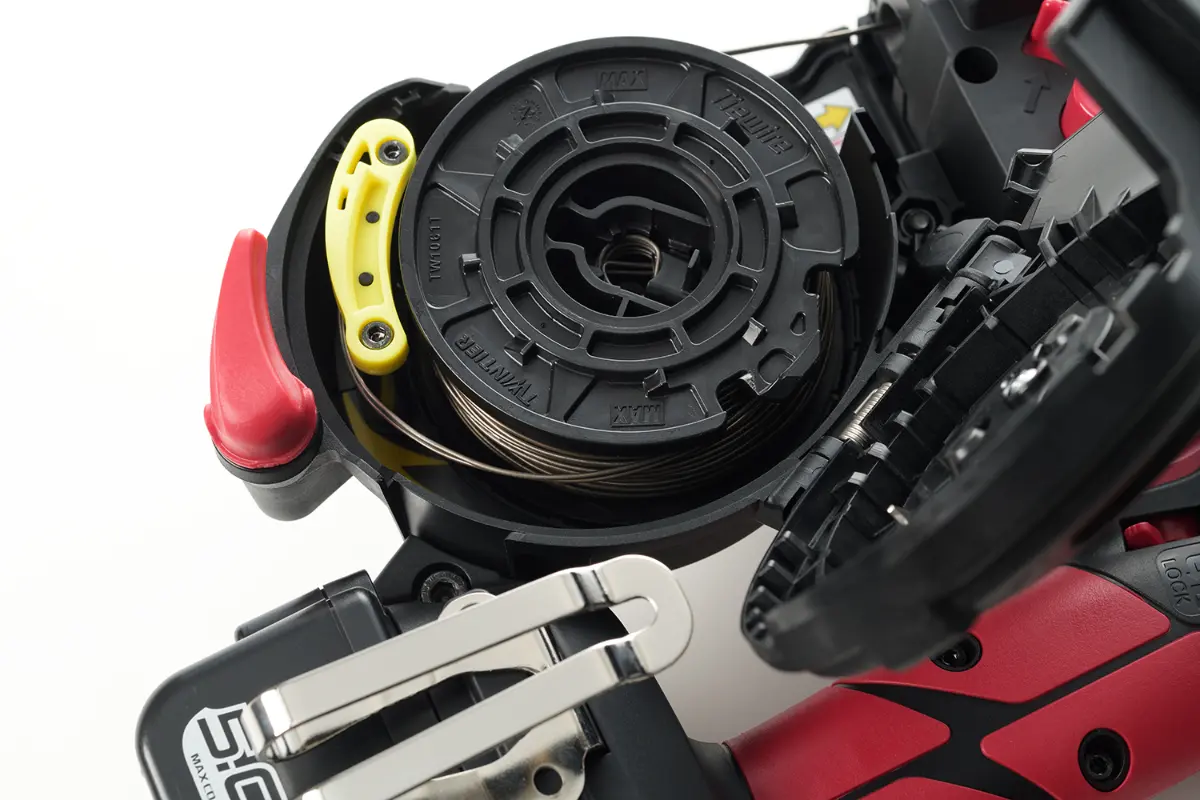

- Easy Wire Loading: Wire feeding assist button helps quickly feed wire when loading the tool without manually opening the feeding gear.
Technical Specifications
| RB443T TWINTIER | |
|---|---|
| Weight | 2.5 kg |
| Dimensions | 295 mm (H) × 120 mm (W) × 330 mm (L) |
| Minimum Ties per Coil | 170 |
| Maximum Ties per Coil | 265 |

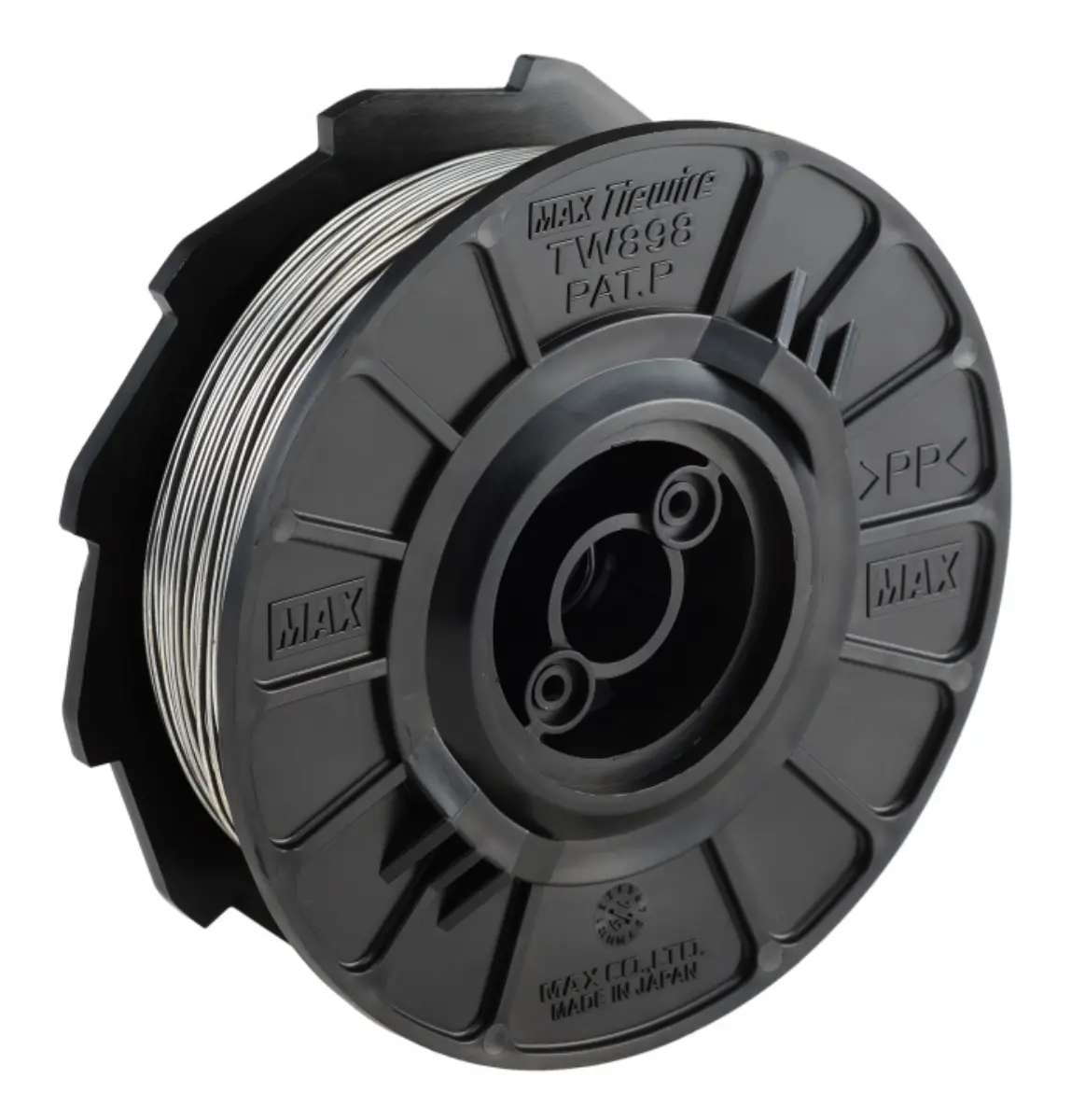

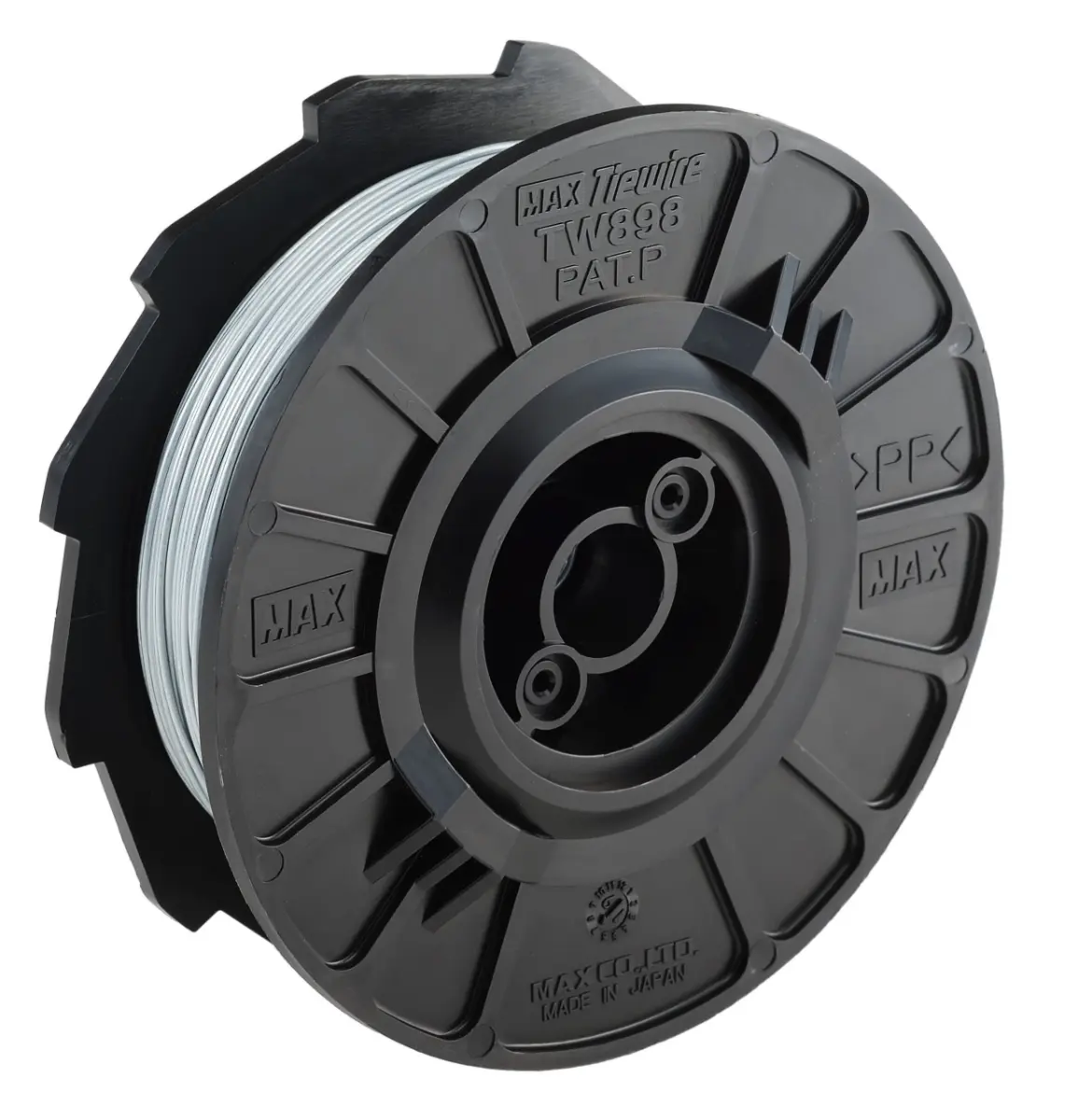

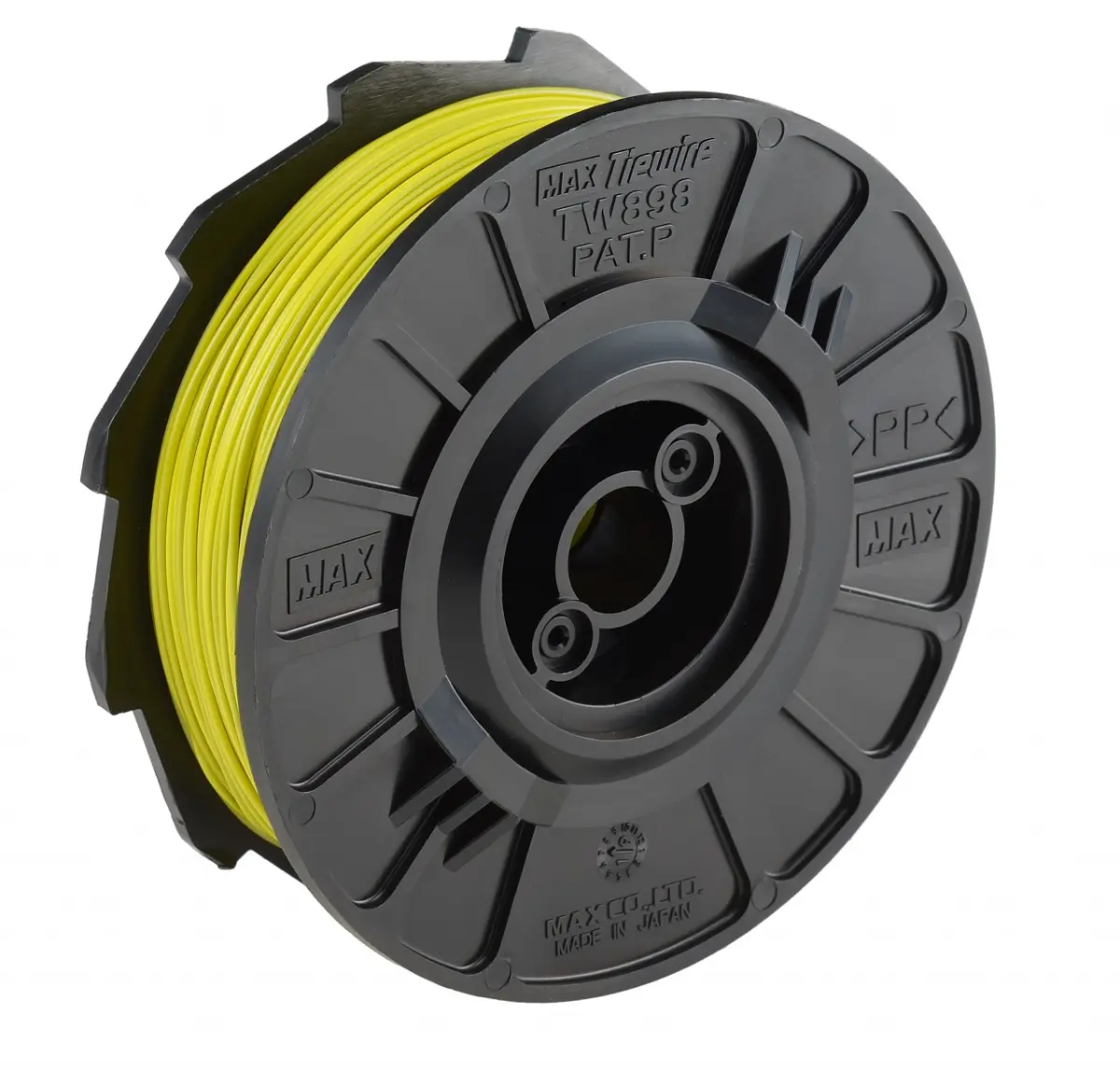

| Applicable Wire Product | TW1061T / 19Ga, TW1061T-PC / 19Ga, TW1061T-EG / 19Ga, TW1061T-S / 19Ga |
| Applicable Rebar Size | Re-bar: 10 × 10 – 20 × 25, up to 12 × 12 × 16 × 16 (Unit: mm), Mesh: φ2.6 – φ8.0 |
| Ties per Charge | 5000 |
| Tie Speed | 0.5 sec |
| Tie Wraps | 1 |
| Battery Charge Time | 65 minutes full charge (50 minutes 80%) |
| Consumables / Accessories | Tool, Owner’s Manual, Battery, Charger, Belt Hook, Carry Case |
